About the 1420 Split Tilt

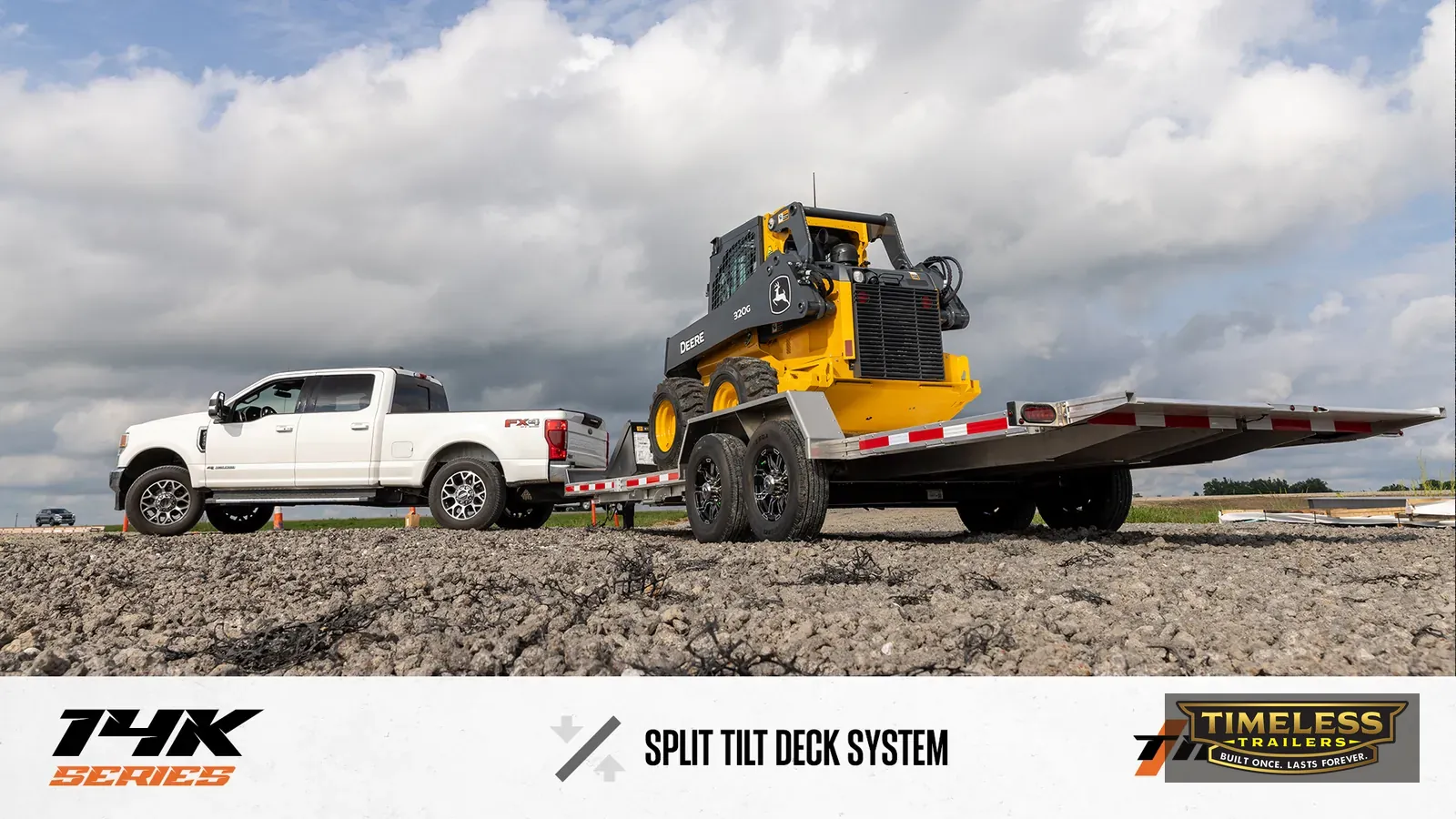

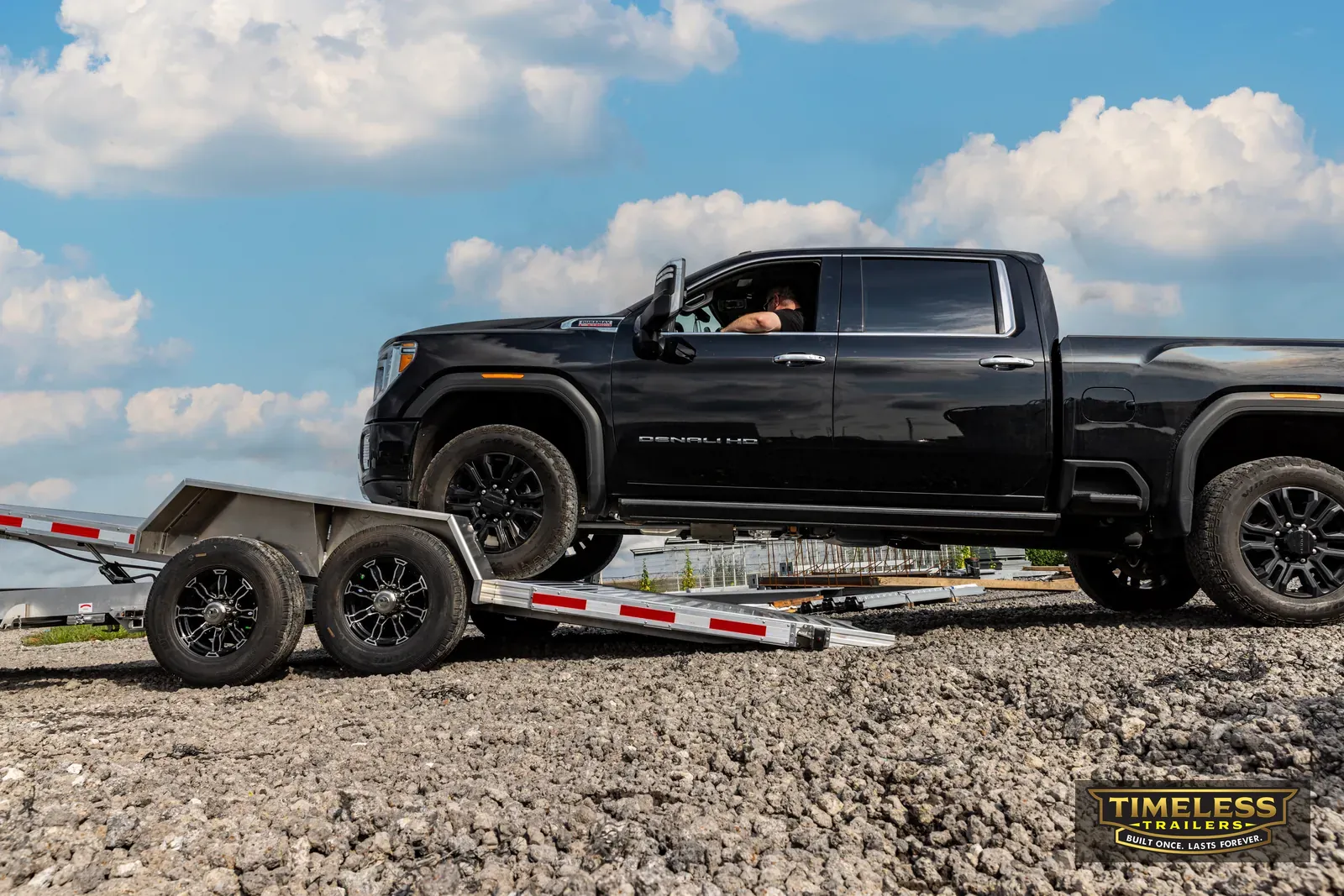

14K split tilt for skid steers and mini excavators. The 16-foot tilt section drops while the 4-foot front deck stays put.
Features
- 16' tilt deck + 4' stationary deck, 82-3/8" wide
- 22" deck height, 12° loading angle
- Tandem 7,000 lb rubber torsion axles
- 18 stake pockets
- Side crank jack, 12,000 lb
- Adjustable 2-5/16" coupler
- LED lighting
Full specs
| Payload | 11,320 lb |
|---|---|
| GVWR | 14,000 lb |
| Empty weight | 2,680 lb |
| Deck | 16' tilt + 4' stationary x 82-3/8" |
| Deck width | 102" overall |
| Loading | Split tilt deck · 12° loading angle |
| Overall length | 24' 6" |
| Axles | Tandem 7,000 lb rubber torsion |
| Hitch | Bumper pull (2-5/16" ball, adjustable) |
| Brakes | Electric, self-adjusting |
| Tires | ST235/80R16E, 10 ply |
| Construction | Aluminum, no structural welds |
Specs from Timpte's 2026 spec sheet. Empty weights are estimates; options change them.
Download the spec sheet (PDF)
