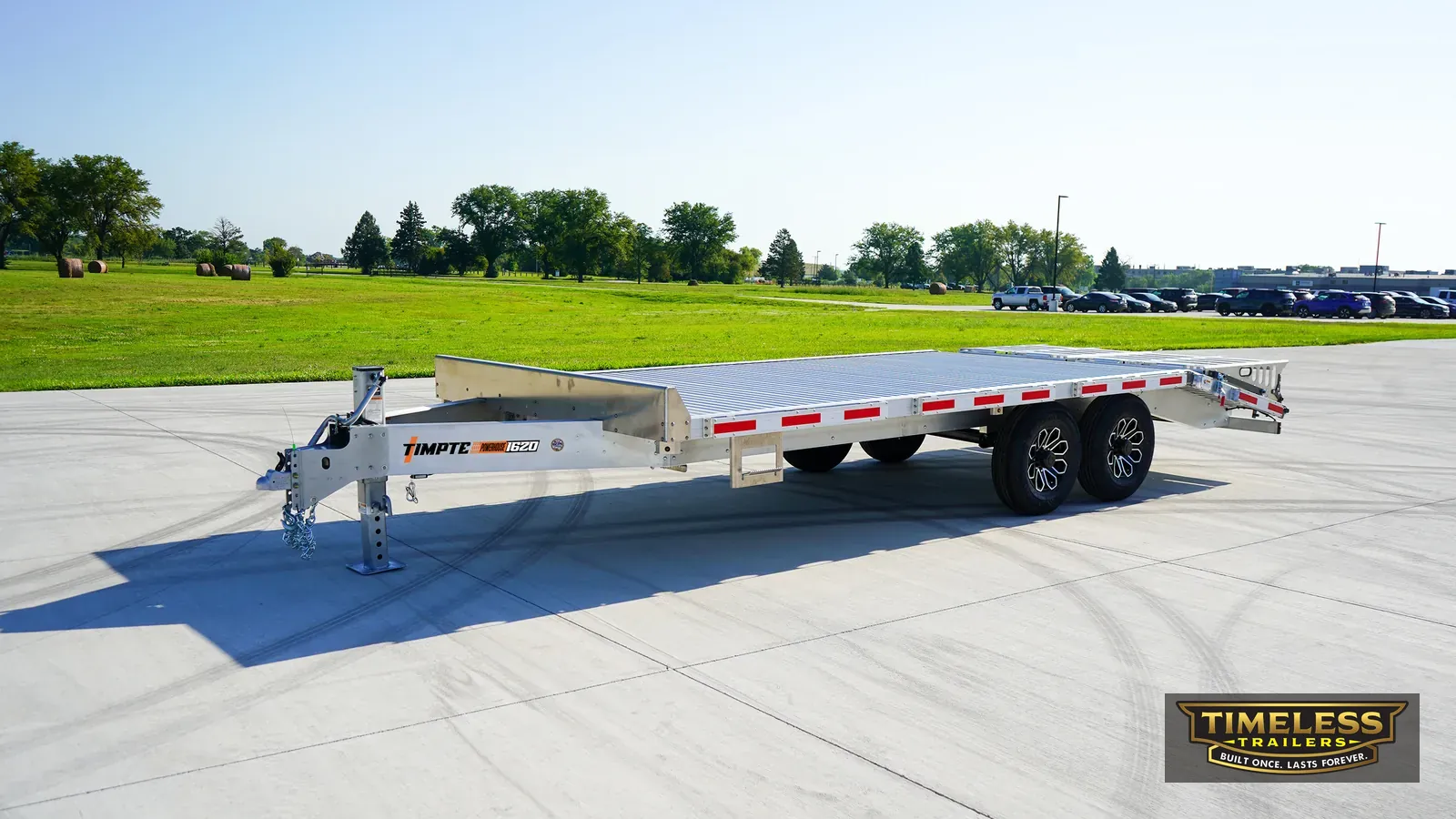

About the 1620 Deck Over
16K deck over: the full 98-inch deck sits above the wheels, with a 5-foot dovetail and 50/50 ramps. Updated design for 2026.
Features
- 20' x 98.25" usable deck over the wheels

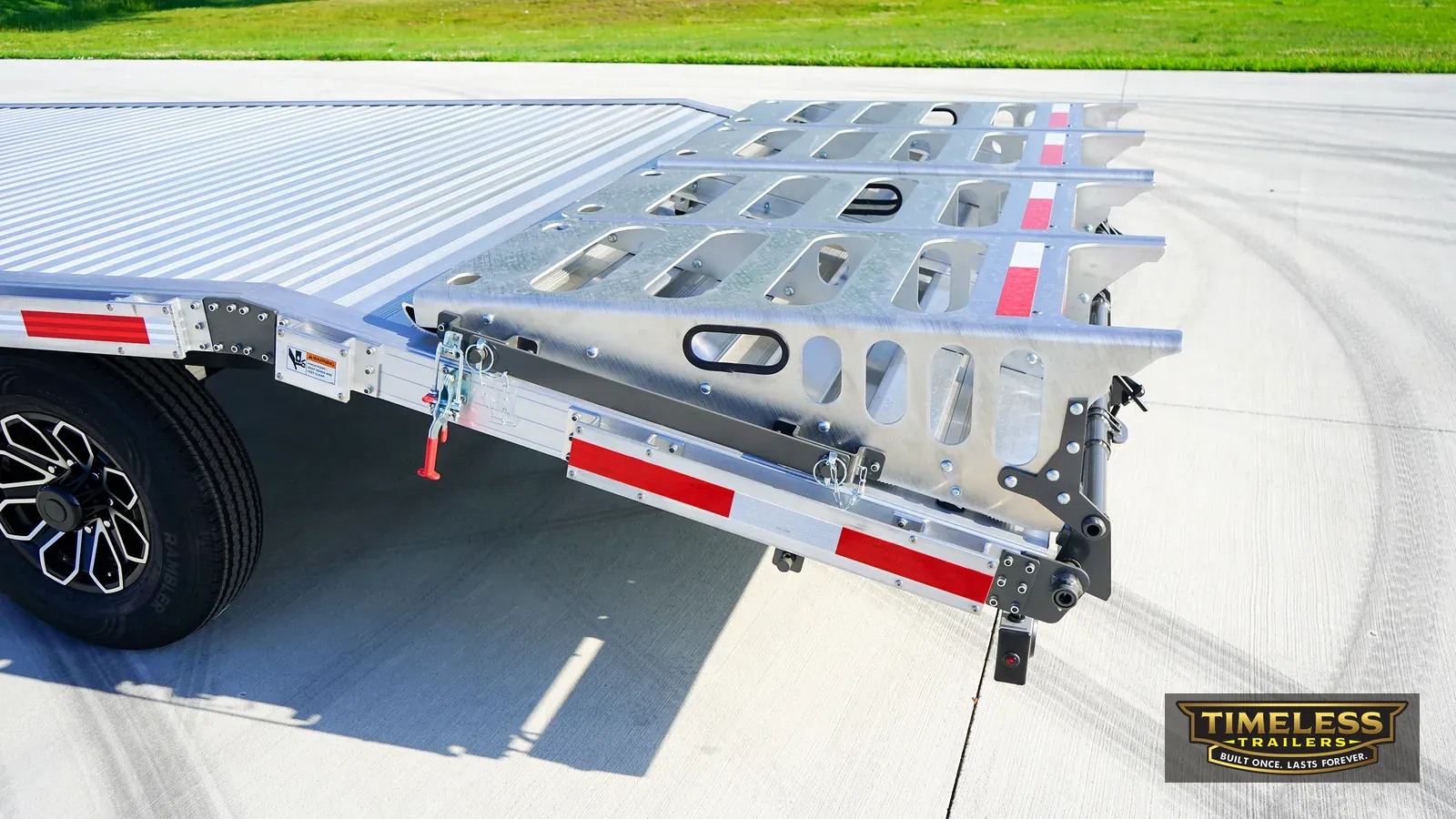

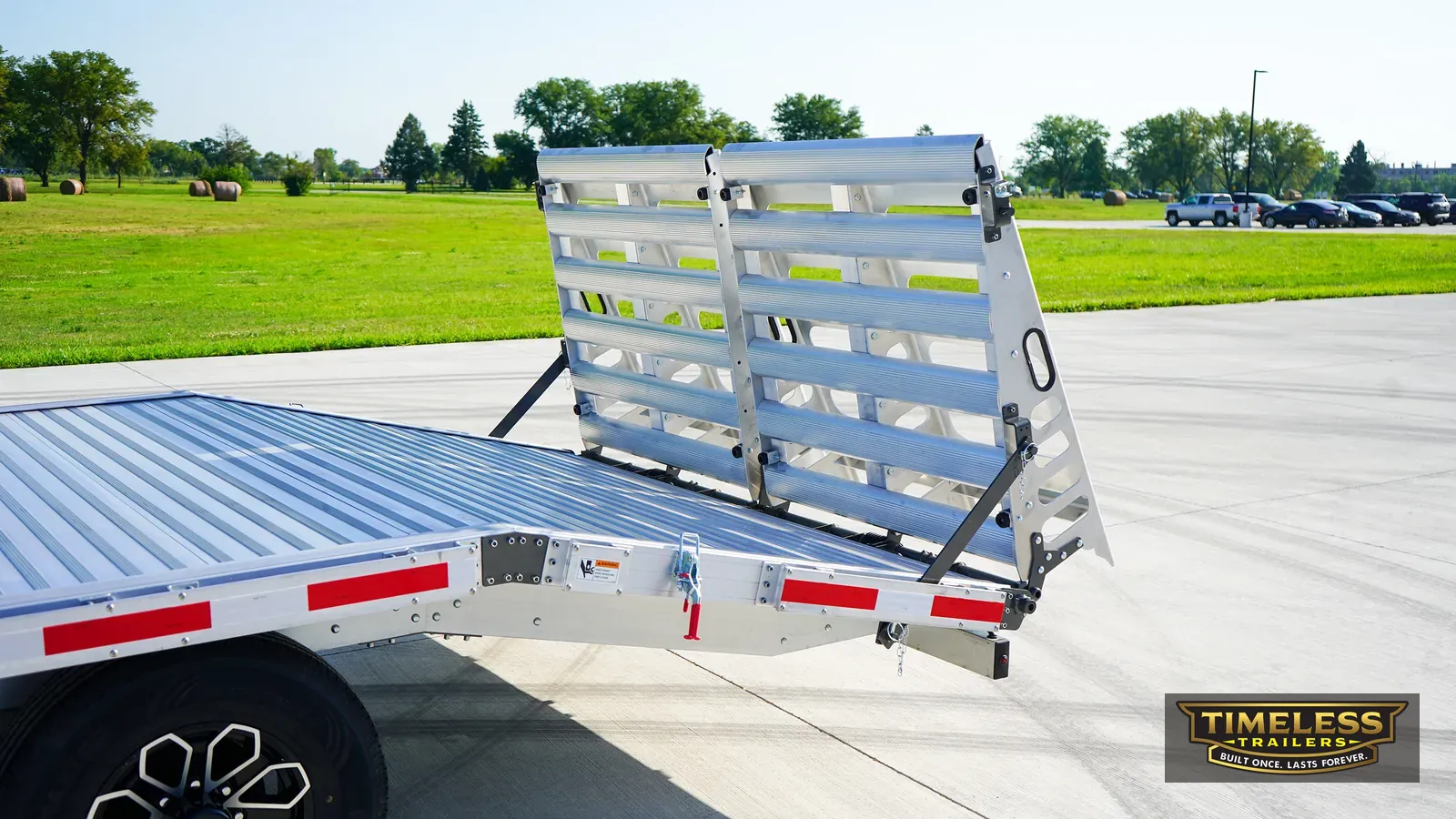

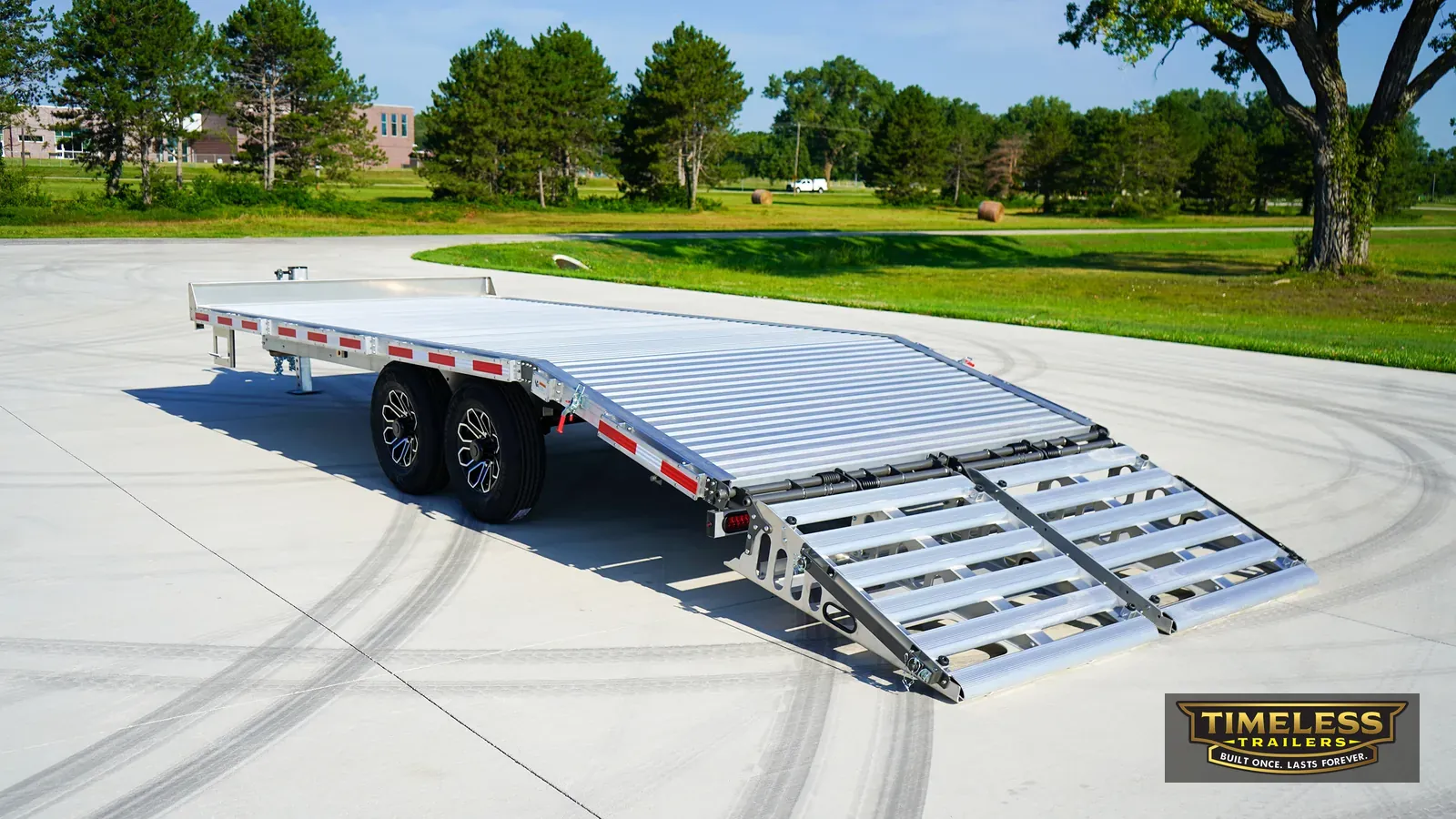

- 60" dovetail with approx. 4' 50/50 ramps
- 35" deck height, 14° loading angle
- Tandem 8,000 lb rubber torsion axles
- 24 stake pockets
- 2026 update: up to 520 lb more payload than the previous model
Full specs
| Payload | 12,940 lb |
|---|---|
| GVWR | 16,000 lb |
| Empty weight | 3,060 lb |
| Deck | 20' x 98.25" (incl. 60" dovetail) |
| Deck width | 102" overall, 98.25" deck |
| Loading | Dovetail + 50/50 ramps (approx. 4') · 14° loading angle |
| Overall length | 25' 8" |
| Axles | Tandem 8,000 lb rubber torsion |
| Hitch | Bumper pull (2-5/16" ball, adjustable) |
| Brakes | Electric, self-adjusting |
| Tires | ST235/80R16G, 14 ply |
| Construction | Aluminum, no structural welds |
Specs from Timpte's 2026 spec sheet. Empty weights are estimates; options change them.
Download the spec sheet (PDF)
