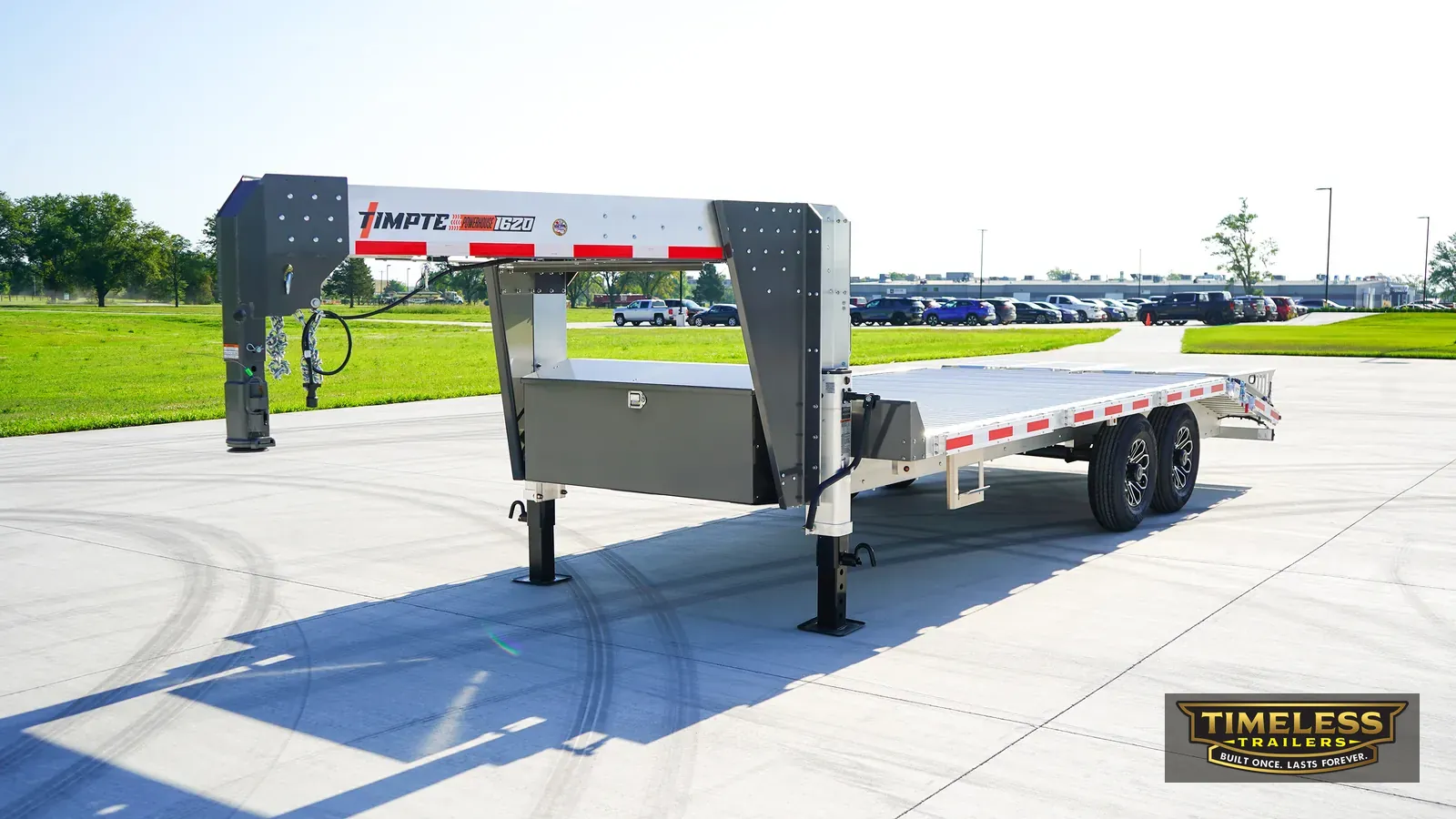

Timpte 1620 Gooseneck, front view of the gooseneck hitch and jacks
  • Timpte 1620 Gooseneck, front view of the gooseneck hitch and jacks

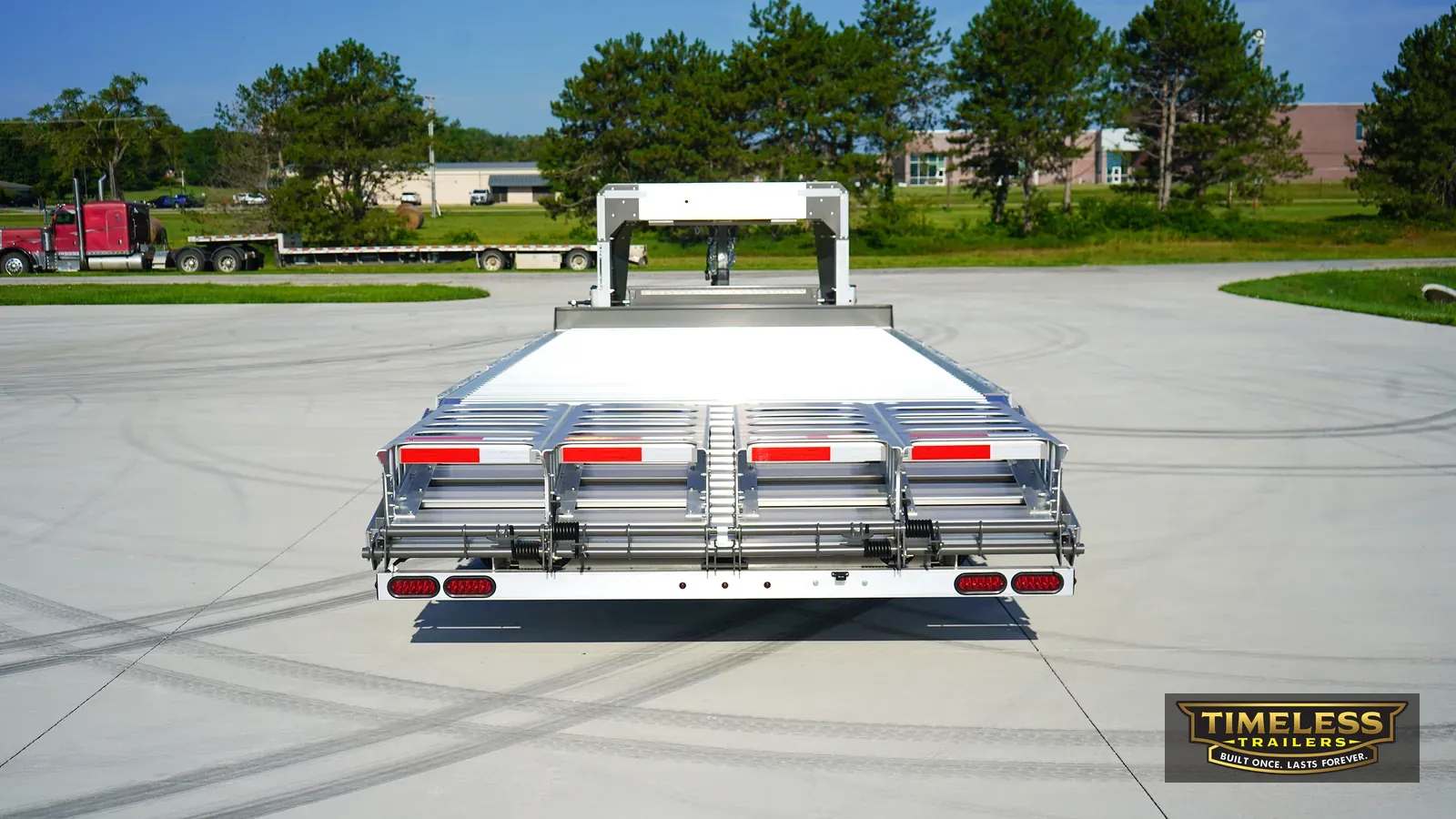

  • Timpte 1620 Gooseneck from the rear with the ramps folded up and tail lights

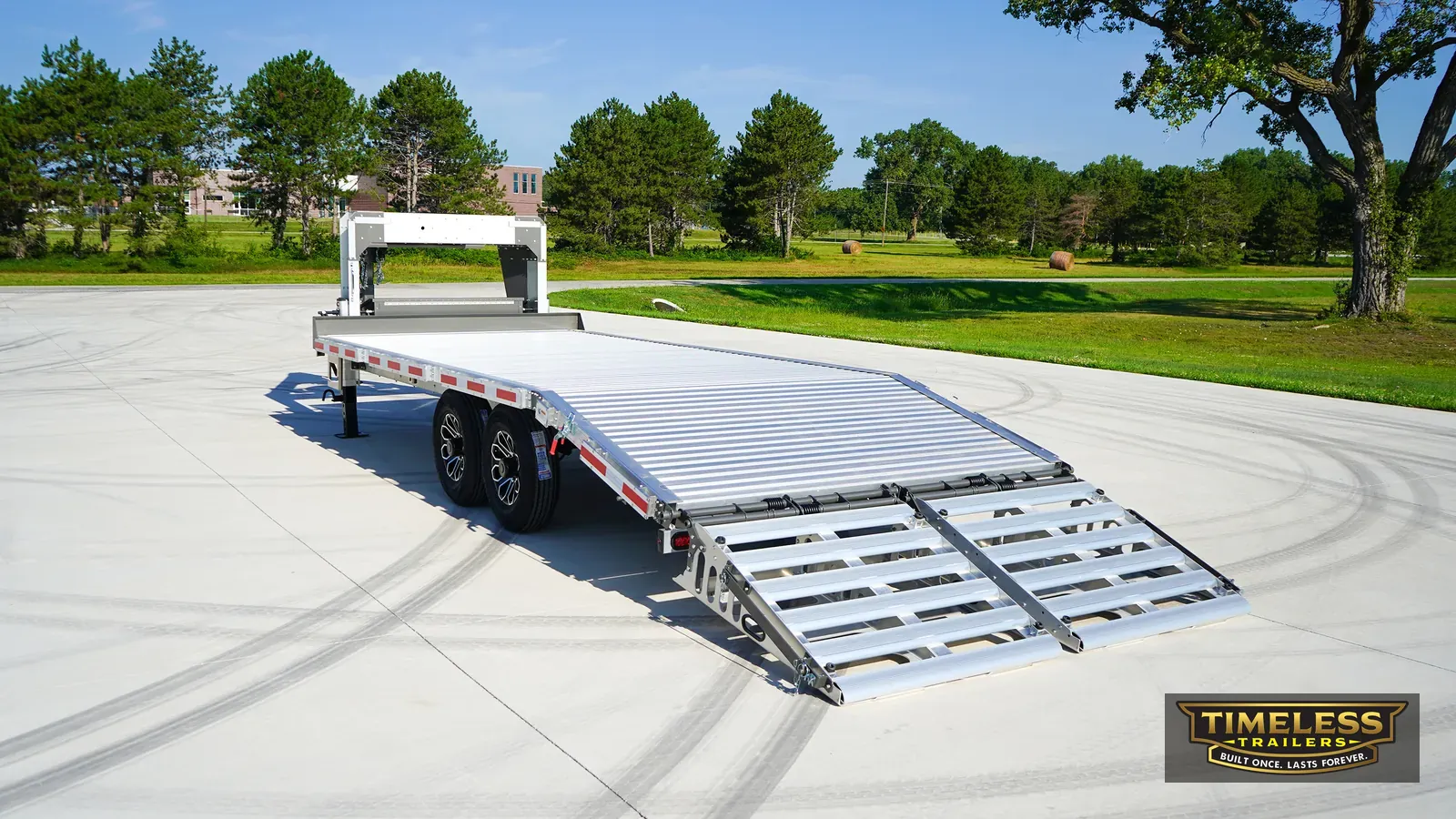

  • Timpte 1620 Gooseneck with the rear ramps lowered

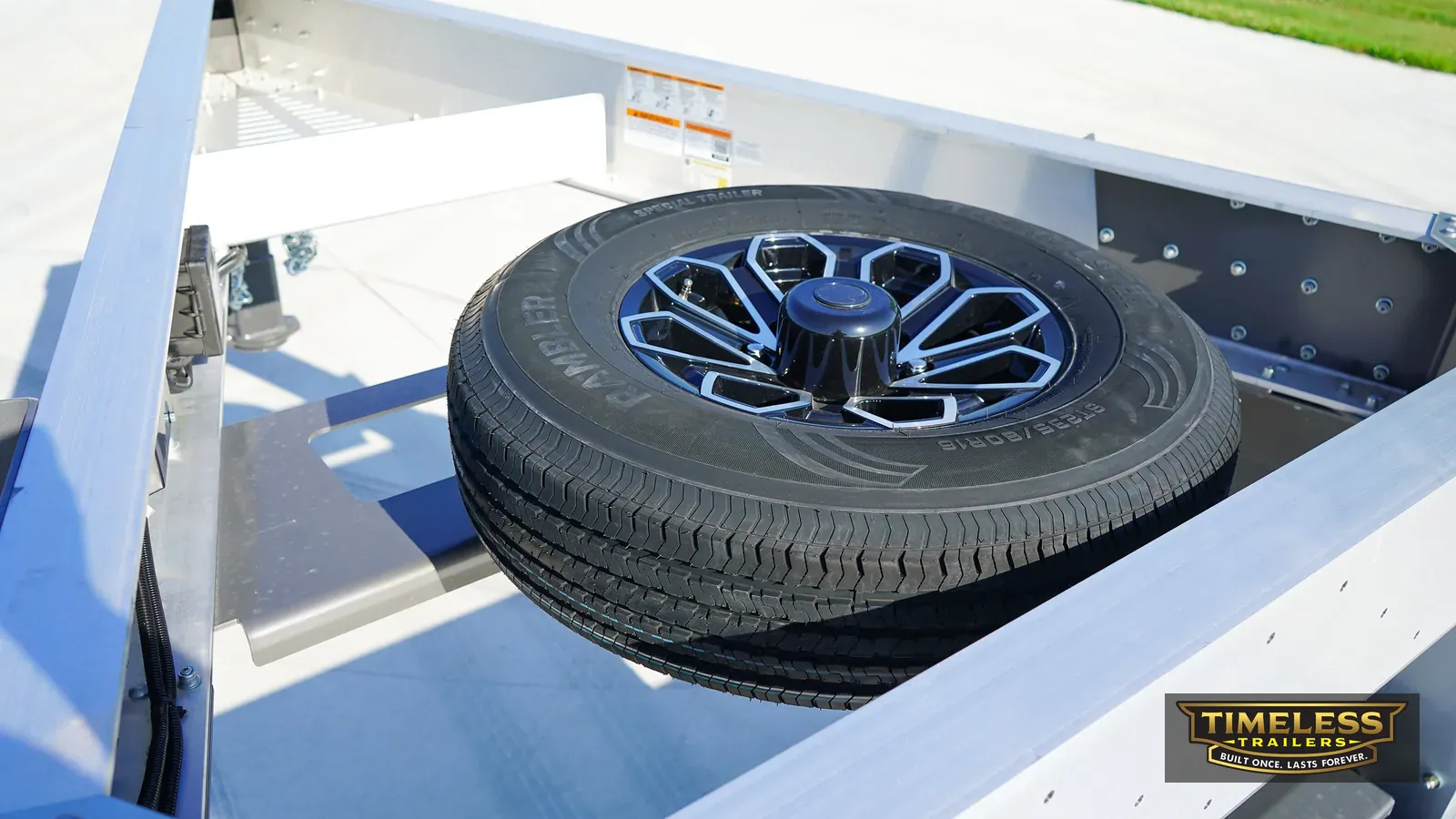

  • Spare tire mounted under the deck of the Timpte 1620 Gooseneck

About the 1620 Gooseneck

16K gooseneck deck over for longer runs and bigger machines. Toolbox with chain rack, chain tray and spare tire come standard.

Features

  • 20' x 98.25" usable deck
  • 60" dovetail with approx. 4' ramps
  • 35" deck height, 14° loading angle
  • Tandem 7,000 lb rubber torsion axles
  • Dual 12,000 lb jacks
  • Toolbox with chain rack, chain tray, spare tire and mount, front bump rail

Full specs

Payload12,480 lb
GVWR16,000 lb
Empty weight3,460 lb
Deck20' x 98.25" (incl. 60" dovetail)
Deck width102" overall, 98.25" deck
LoadingDovetail + ramps (approx. 4') · 14° loading angle
Overall length28' 7"
AxlesTandem 7,000 lb rubber torsion
HitchGooseneck (2-5/16" ball)
BrakesElectric, self-adjusting
TiresST235/80R16E, 10 ply
ConstructionAluminum, no structural welds

Specs from Timpte's 2026 spec sheet. Empty weights are estimates; options change them.

Download the spec sheet (PDF)
On the LotCallGet a Quote
