About the 1624 Split Tilt

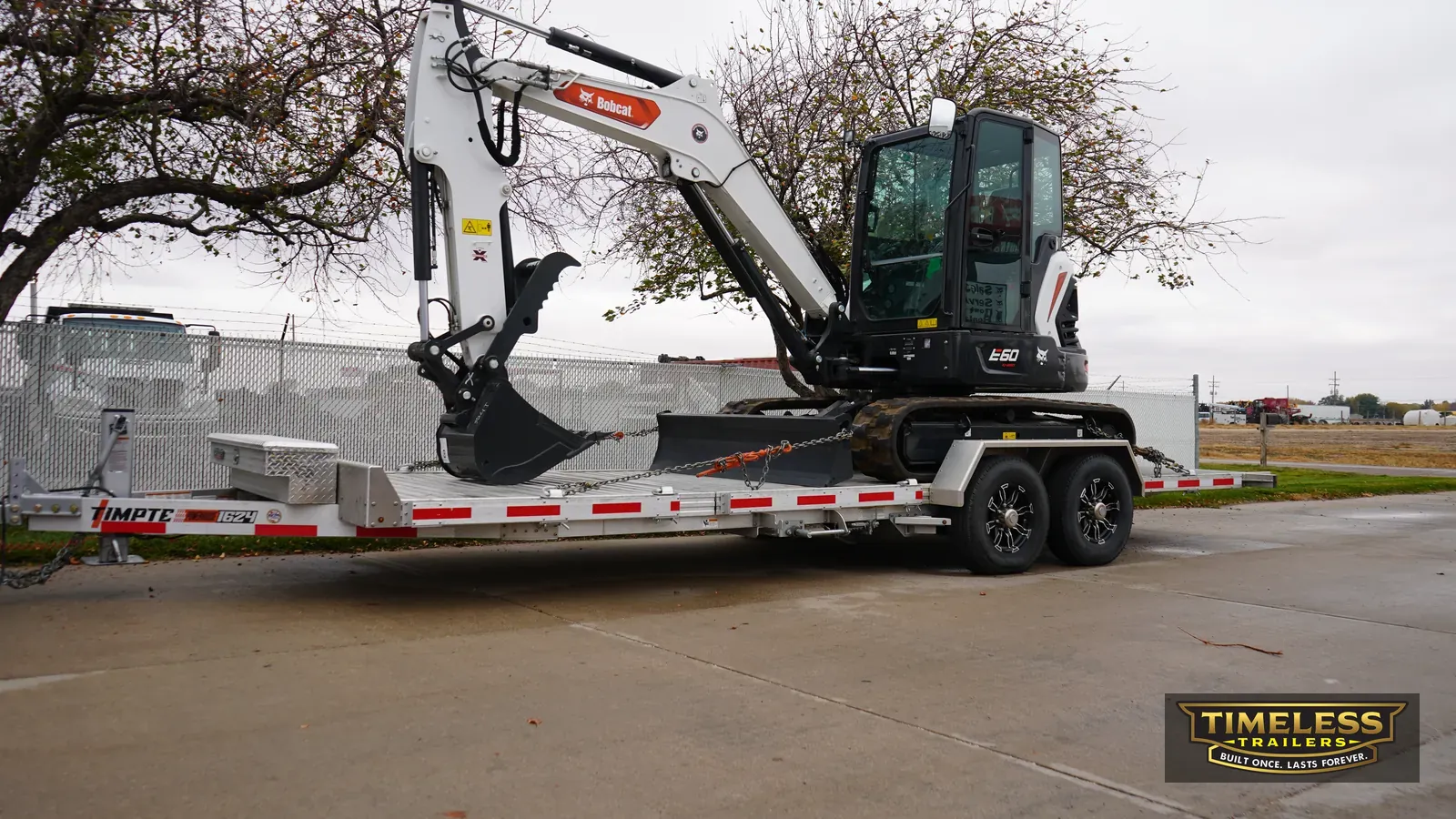

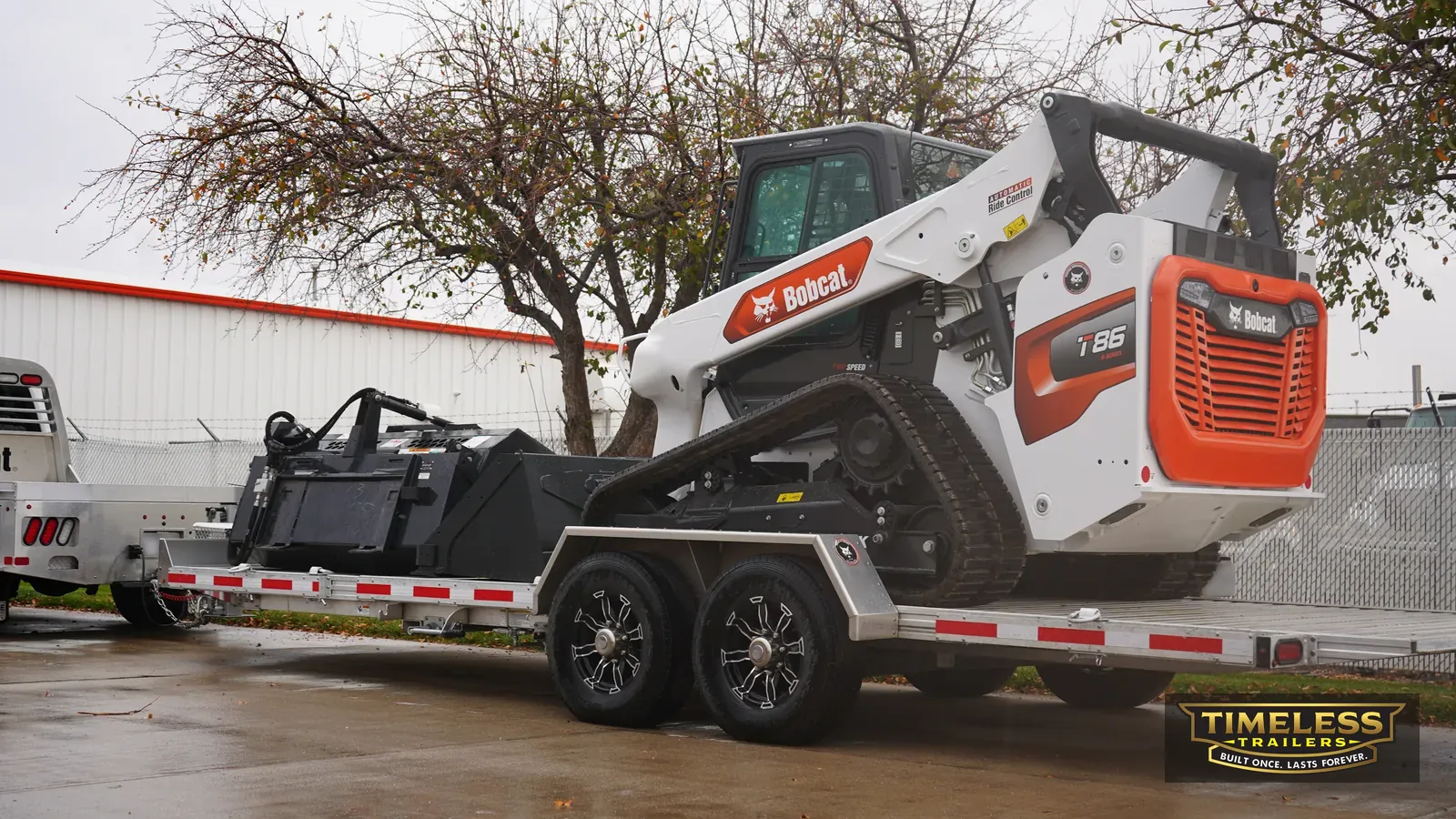

16K split tilt with an 18-foot tilt and a 6-foot front deck, for bigger track loaders and a mini-ex with attachments.
Features
- 18' tilt deck + 6' stationary deck, 82-3/8" wide
- 22" deck height, 12° loading angle
- Tandem 8,000 lb rubber torsion axles
- ST235/80R16G 14-ply tires
- 18 stake pockets
- Side crank jack, 12,000 lb
- LED lighting
Full specs
| Payload | 12,800 lb |
|---|---|
| GVWR | 16,000 lb |
| Empty weight | 3,200 lb |
| Deck | 18' tilt + 6' stationary x 82-3/8" |
| Deck width | 102" overall |

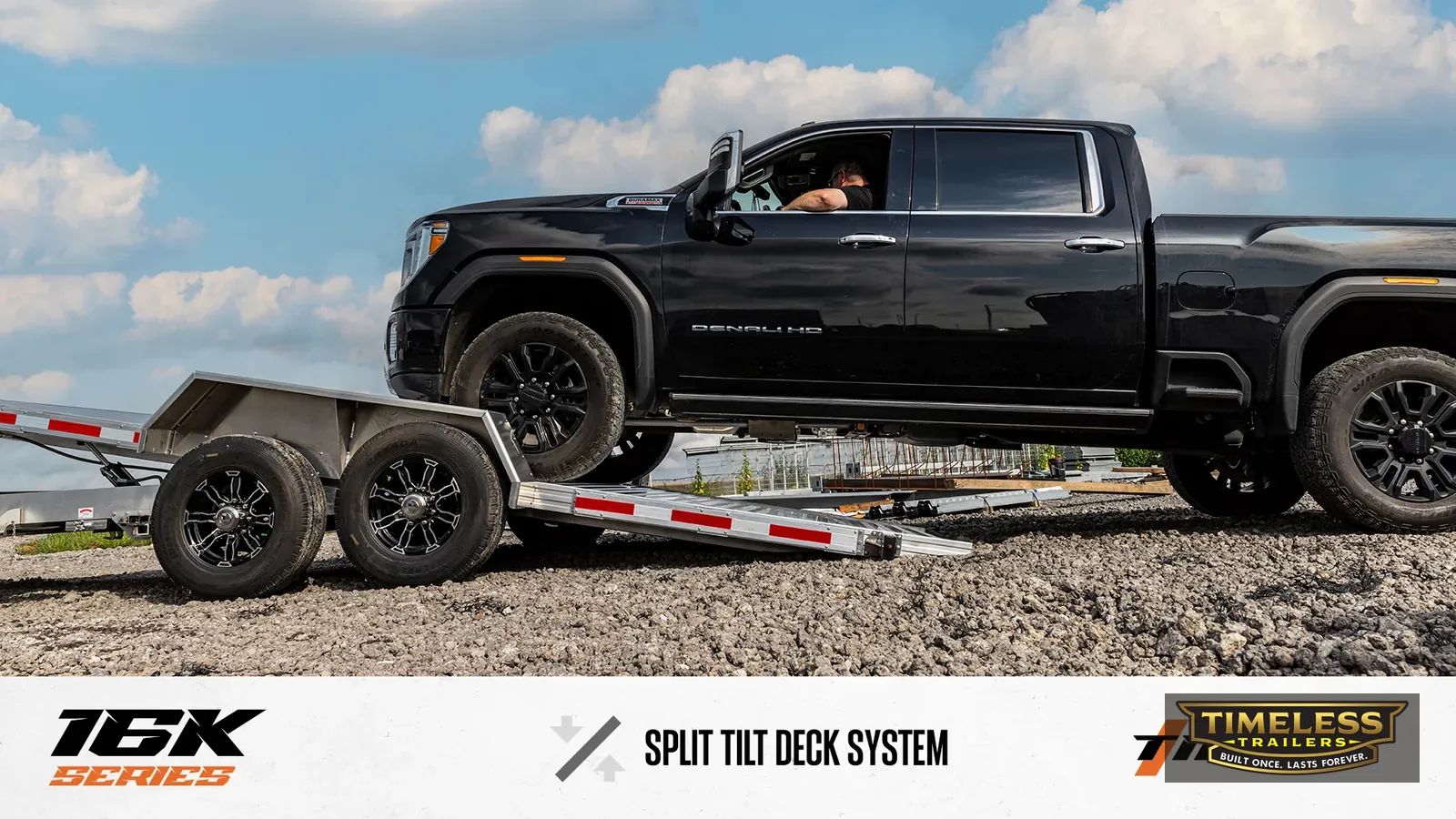

| Loading | Split tilt deck · 12° loading angle |
| Overall length | 29' 1" |
| Axles | Tandem 8,000 lb rubber torsion |
| Hitch | Bumper pull (2-5/16" ball, adjustable) |
| Brakes | Electric, self-adjusting |
| Tires | ST235/80R16G, 14 ply |
| Construction | Aluminum, no structural welds |
Specs from Timpte's 2026 spec sheet. Empty weights are estimates; options change them.
Download the spec sheet (PDF)
